A clean RGB footwell setup can make the cabin feel completely different the moment you open the door. If you want to install RGB footwell lights without exposed wiring, uneven hotspots or a cheap-looking glow, the difference is all in the planning. Done properly, ambient lighting adds a premium, customised feel to everything from a daily-driven Golf or i30 to a Subaru, BMW, Ranger or weekend show car.
The goal is not to flood the cabin with light. It is to create a controlled wash of colour beneath the dash and front seats, with the LEDs hidden from direct view. That keeps the result sharp, comfortable and worthy of the rest of your build.
Choose the right RGB footwell lighting kit
Before pulling trim panels apart, choose a kit that suits how you use the car. Most RGB footwell kits include four LED strips or pods, a control module, extension leads and a power connection. App-controlled kits give you the widest choice of colours, brightness settings and effects, while remote-controlled kits are simple and quick for first-time DIY installs.
For a refined interior look, look for lights with a diffused lens rather than exposed individual LED chips. Diffused strips create a smoother spread of colour across the carpet and lower trim. They are especially effective in darker interiors, where a single bright LED point can look harsh.
Think about power before buying as well. A 12V accessory socket connection is the quickest route and works well if you want a removable setup. Hardwiring into an accessory-powered circuit takes more care, but gives you a cleaner finish and frees up the socket for charging your mobile or running other accessories. If your car already has factory ambient lighting, choose a kit that lets you set a close colour match rather than competing with it.
Plan where every light and wire will go
The best time to solve wiring issues is before adhesive touches the car. Sit in the driver’s seat and identify the areas you want illuminated: beneath the driver and passenger dash, then under each front seat to light the rear footwells. Hold each strip or pod in place and check it from normal seating positions.

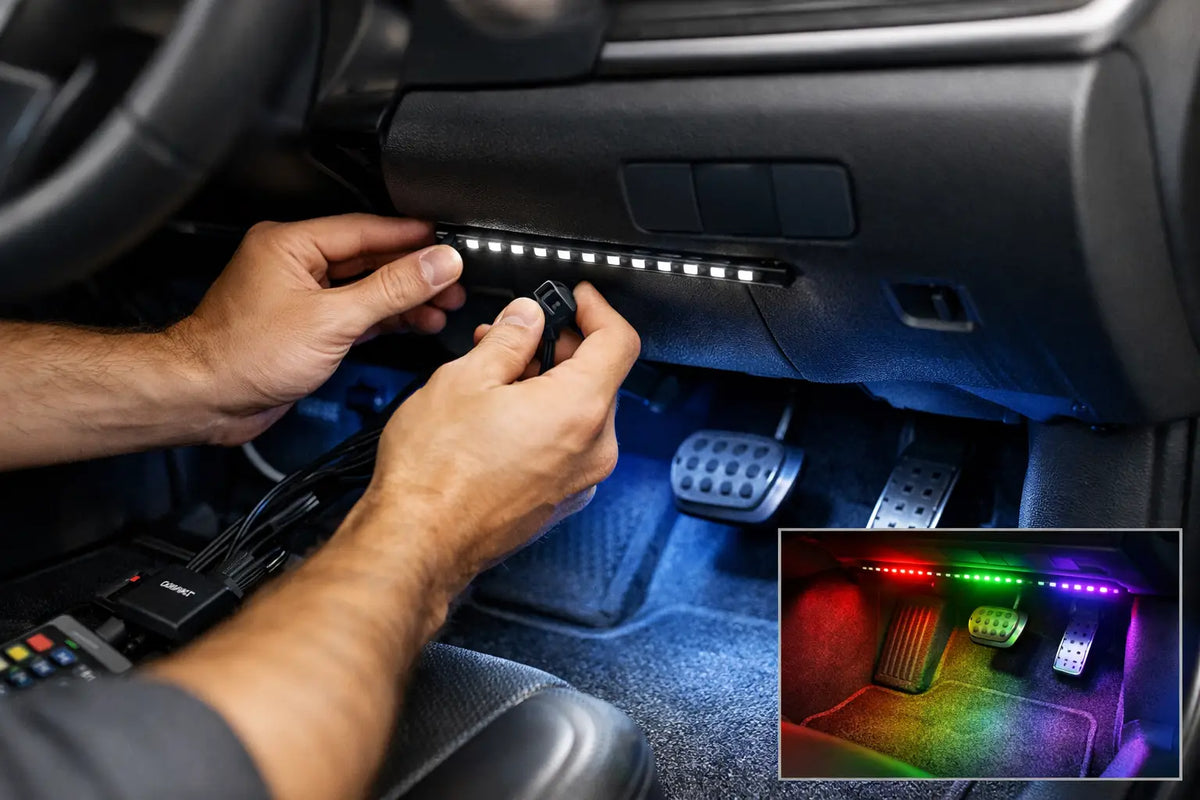

You should see the glow, not the LED itself. Position the front lights high on the lower dash trim, angled down and slightly towards the centre of the cabin. Under-seat lights should face down or slightly backwards. Avoid mounting them where a passenger’s shoes, a seat rail or loose items can knock them loose.
Keep all wiring clear of moving parts. The driver’s footwell deserves extra attention. No cable should sit near the accelerator, brake or clutch pedal, and nothing should be able to drop into that area over time. Also avoid yellow airbag wiring and connectors under the seats or dash. If you are uncertain about a wire or connector, leave it alone.
A quick dry fit will show whether the supplied leads reach the controller location. The controller is usually easiest to hide behind the glovebox, alongside the centre console, behind a lower dash panel or beneath a front seat. Pick a dry location that remains accessible if you need to reset the kit or pair it with a new mobile.
Prepare the mounting surfaces properly
Interior trim collects dust, interior dressing residue and fine grime that can weaken adhesive pads. Wipe each mounting point with isopropyl alcohol on a clean cloth, then allow it to dry fully. This small step makes a major difference, particularly through a Melbourne summer when cabin temperatures climb.
Most kits use pre-fitted double-sided tape. It is neat and fast, but only as strong as the surface beneath it. Press each light firmly into place for at least 20 to 30 seconds. If the underside of your dash has a heavily textured finish, add small cable ties or adhesive mounting clips where practical instead of relying on tape alone.
Do not drill into lower dash panels unless you know what is behind them. Modern interiors pack wiring looms, ducts and electronic modules into surprisingly tight spaces. Adhesive clips, existing trim gaps and carefully placed cable ties can achieve the same clean result without creating unnecessary damage.
How to install RGB footwell lights with a 12V plug
For most DIY enthusiasts, the 12V accessory socket method is the straightforward option. Start by connecting the LED strips to the control module outside the car, then power the kit briefly to confirm every light works. It is far easier to identify a faulty connection now than after hiding the module behind trim.
Route the front light leads from your chosen controller position to each side of the dash. Tuck the wiring into trim seams using a plastic trim tool, not a screwdriver or metal blade that can mark soft interior plastics. Run the rear light leads beneath the centre console edge or along the side of the carpet, then under each front seat.
Secure the cable every 15 to 20 centimetres where needed so it cannot sag. Leave enough slack beneath the seats for their full forward and rearward movement, but not enough for a loop of wire to hang down. Test both seats through their complete travel before finalising the cable path.
Plug the kit into the 12V socket, switch the ignition on and check the lights. Some vehicles keep the socket live after the key is removed, which means the controller can slowly draw power if left on. If that applies to your car, turn the system off when parked for extended periods or consider a hardwired ignition-switched setup.
Hardwiring for a cleaner factory-style finish
Hardwiring is ideal when you want no visible plug and want the RGB footwell lights to activate only when the ignition is on. This usually involves using an add-a-fuse connector at the interior fuse box, paired with a suitable earth point on the body. Choose an accessory circuit that is live with ignition and use the correct fuse rating for the lighting kit.
The exact fuse layout varies between makes and models, so check your vehicle handbook or wiring information before connecting anything. Avoid safety-critical circuits, airbag circuits and anything related to engine management. A test light or multimeter helps confirm whether a fuse is switched with the ignition or permanently live.
Use a proper crimp connector, heat-shrink where appropriate and a solid metal earth point. Twisting wires together and wrapping them in tape may work briefly, but it is not the finish you want in a car you care about. If hardwiring feels outside your comfort zone, an auto electrician can complete the power connection while you handle the placement and cable management.
Set the colour for the cabin, not the car park
The brightest setting is rarely the best setting. At night, overly bright blue, red or purple lighting can reflect in windows, distract from the road and make the interior feel less premium. Start at around 30 to 50 per cent brightness, then adjust after dark with the doors closed.
Solid colours generally deliver the cleanest look. Ice blue complements modern German interiors, red suits a more aggressive performance build, and warm white can add subtle factory-style ambience. Colour-changing modes and music effects are fun for meets, photos and parked displays, but a steady colour is usually the better choice for everyday driving.
If your kit has a door-trigger feature, test it before reinstalling trim. A gradual fade on entry and exit looks polished, while an abrupt full-brightness effect can be distracting. Keep the app or remote somewhere accessible until you have found your preferred settings.
Avoid the details that make an install look cheap
The difference between a premium ambient lighting upgrade and a rushed job comes down to restraint. Avoid visible wires crossing carpet, lights pointed directly at knees and strips mounted low enough to be kicked. Check the install at night from every seating position, including the rear seats.
Before calling it finished, make sure the pedals move freely, seats slide without catching a cable and all trim panels sit flush. Confirm that the lights do not interfere with any factory controls or warning indicators. Interior lighting should add atmosphere, not create a distraction.
A tidy RGB footwell setup is one of the easiest ways to give your cabin a high-end edge without major interior fabrication. Pair it with clean trim, matching LED upgrades or subtle exterior styling, and your car feels more like your own every time you climb in.
